Gold® & Gold® Hi-Performance Ceiling Segments
Bradford Gold and Gold Hi-Performance (HP) Ceiling Segments are quality glasswool segments for use across residential and commercial buildings. Installed in new builds, renovations or retrofits, they form a reliable thermal and acoustic layer that lifts comfort and can cut heating and cooling energy use (when correctly specified and installed).
Available across a wide R-value spread to suit climate zones and design targets nationwide, the range is Australian-made from up to 80% recycled glass, low allergen and deemed non-combustible. Segments sit neatly between joists, hold their thickness for the life of the building and are supported locally by CSR Bradford technical advice and a 70-year performance warranty.
Features and Benefits
Bradford Gold ceiling insulation segments help stabilise indoor temperatures and soften external noise for potential year-round energy savings. Low-itch, easy-to-handle segments cut cleanly, slot into place and won't slump, shrink or deteriorate. The HP option adds higher density and top-end R-values for tougher energy targets, extreme climates and commercial ceilings, delivering premium comfort with the same simple, fast installation.
Key Features
Thermal & acoustic comfort
Improves indoor temperatures year-round while helping reduce external noise
Fire safety
Non-combustible glasswool for added peace of mind
High-performance option
Higher-density HP segments lift R-values for tight build-ups and tough climate zones

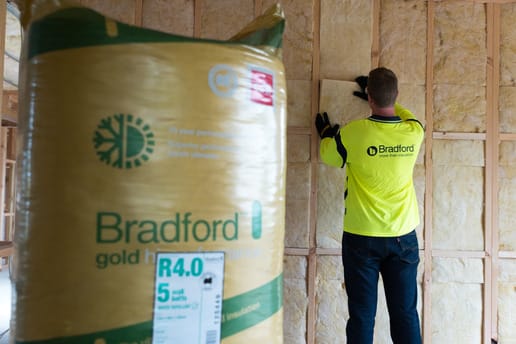

Easy to install
Segments cut cleanly, sit neatly and stay in place for a consistent finish

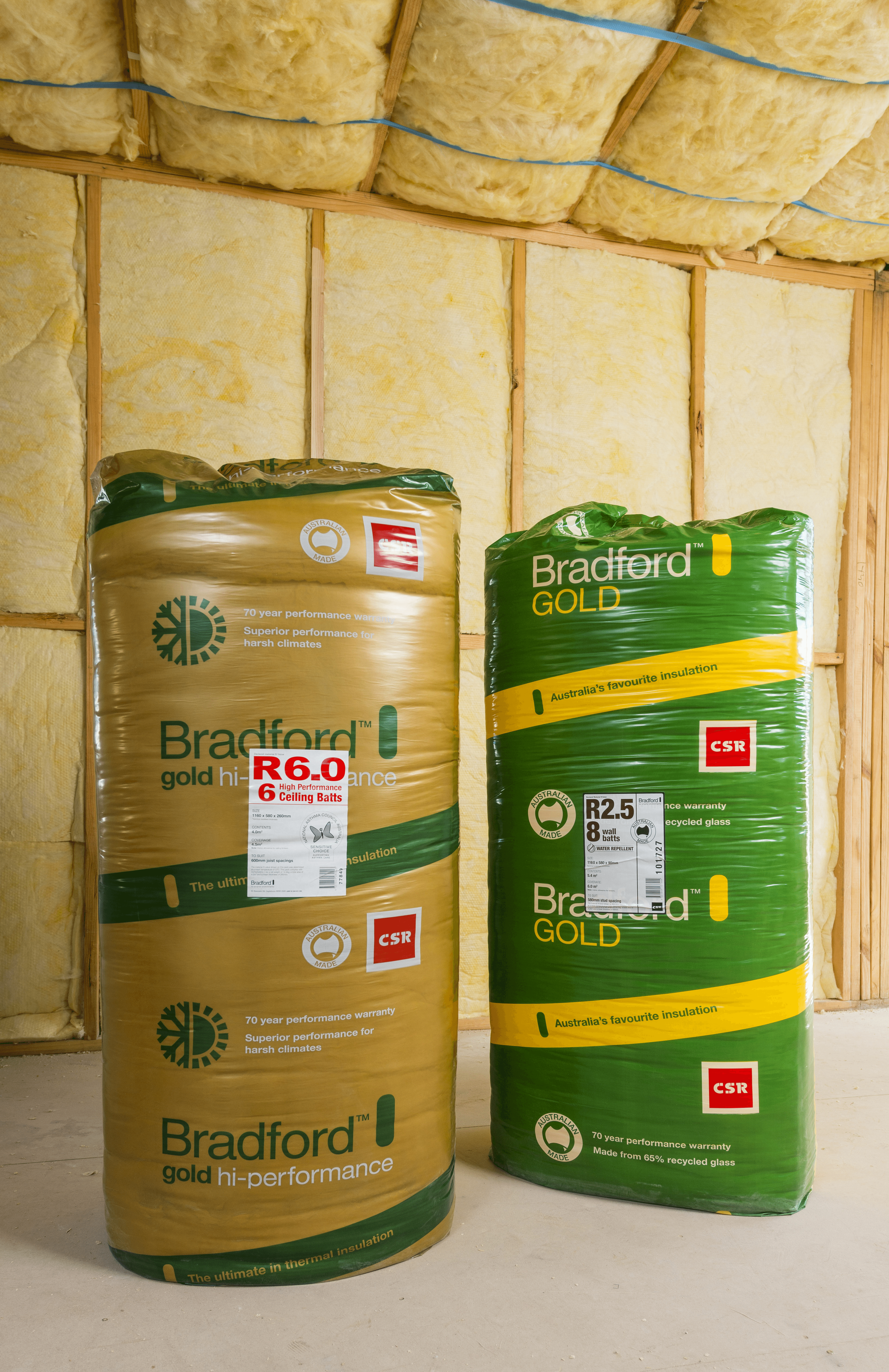

Range
Bradford Gold is available in practical sizes and R-values to match common joist spacings and project needs.
Bradford Gold Ceiling Segments
- R-values: R1.8–R4.0
- Widths: 430 mm (to suit ~99% of New Zealand joist spacings)
- Use: Most residential ceilings and light commercial areas needing dependable thermal and acoustic performance.
Bradford Hi-Performance (HP) Ceiling Segments
- R-values: R5.2–R7.3
- Uses: Higher-density segments for all climate zones, extreme weather regions and energy-efficient designs. Well suited to most residential and commercial ceiling applications, and supplied in convenient “stacker” formats for efficient handling.
Technical Specifications
Gold Ceiling Segments
| Material R-Value | Thickness (mm) | DImensions | Pieces per Pack | m2 per pack | Packs per Multi | Product Code |
| 1.8 | 90 | 1160mm x 430mm | 22 | 11.0 | 6 | 480025 |
| 2.9 | 145 | 1160mm x 430mm | 20 | 10.0 | 5 | 468022 |
| 3.3 | 165 | 1160mm x 430mm | 16 | 8.0 | 5 | 468023 |
| 3.6 | 185 | 1160mm x 430mm | 16 | 8.0 | 5 | 474662 |
| 4.0 | 215 | 1160mm x 430mm | 12 | 6.0 | 5 | 84834 |
^ AS/NZS 1530.3 Test Report available.
Material R-values are determined in accordance with AS/NZS 4859.1 at 23°C and apply to the product installed at nominal thickness.
Gold Hi-Perfomance Ceiling Segments
| Material R-Value | Thickness (mm) | DImensions | Pieces per Pack | m2 per pack | Packs per Multi | Product Code |
| 5.2 | 240 | 1160mm x 430mm | 8 | 4.0 | 6 | 474661 |
| 6.3 | 260 | 1160mm x 430mm | 6 | 3.0 | 6 | 480048 |
| 7.3 | 290 | 1160mm x 430mm | 4 | 2.1 | 6 | 483801 |
^ AS/NZS 1530.3 Test Report available.
Material R-values are determined in accordance with AS/NZS 4859.1 at 23°C and apply to the product installed at nominal thickness.
Performance Guaranteed
Australian Made
Licensed by Australian Made Campaign Limited to use the Australian Made logo.
CodeMark
These products are certified with CodeMark Certificates of Conformity CM20329 and CM20332 for NCC Volume 2 and the ABCB Housing provisions Standard.
Sensitive Choice
Certified by an independent expert panel to meet the health and safety standards of the Sensitive Choice program for asthma and allergy friendly products.
ISO 9001
Meets the ISO 9001 standards for quality management through independent verification.
