Ashgrid Roof Spacer System

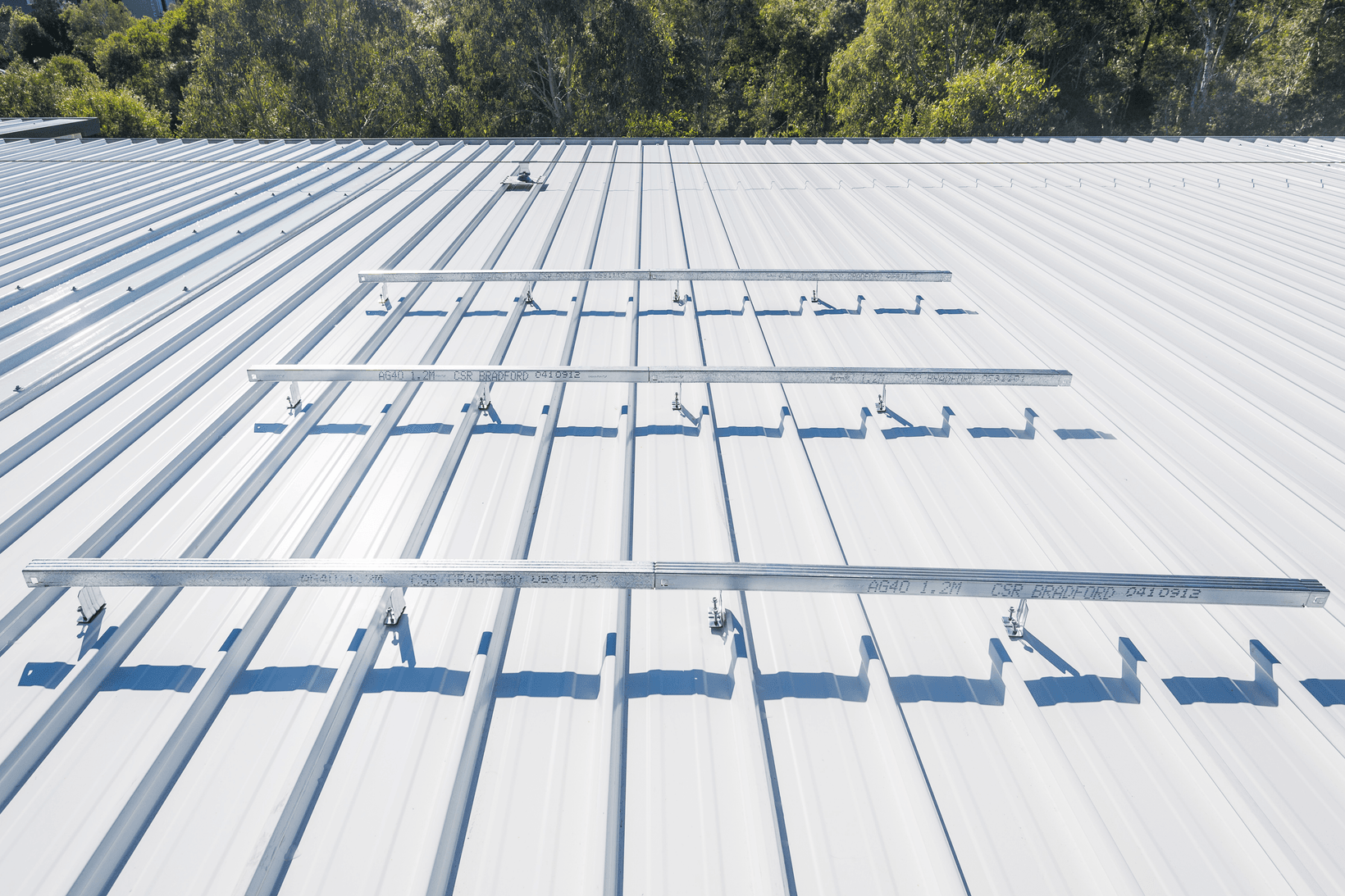

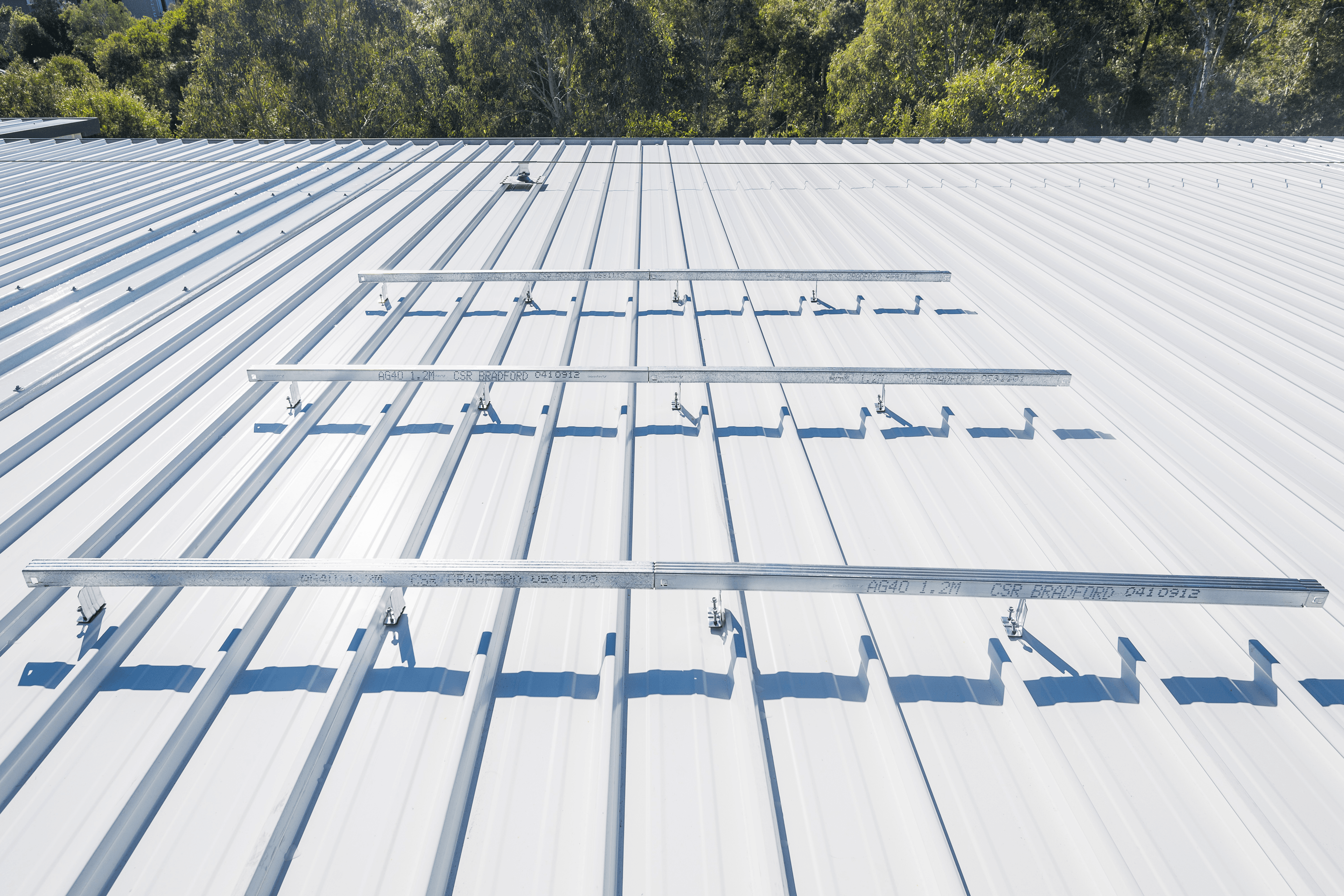

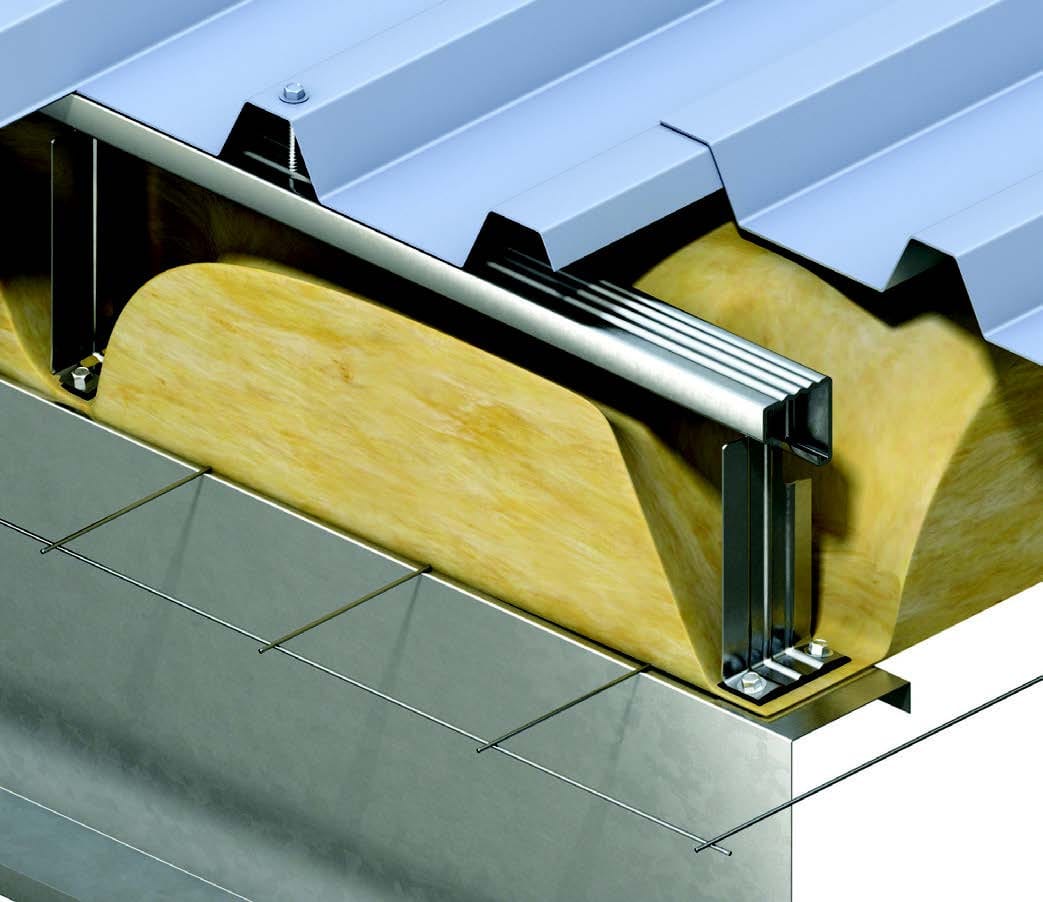

Bradford Ashgrid Roof Spacer System is a modular roof raiser designed for commercial and industrial purlin roofs. The system raises the roof sheet above the purlin, creating a defined space between the safety mesh and roof sheet for insulation. Bradford Ashgrid consists of galvanised bars and supporting brackets pre-assembled in 1200 mm sections. Backed by decades of use in Europe and tested for both cyclonic and non-cyclonic conditions, Bradford Ashgrid is a proven choice among roofing spacers.
Features and Benefits
Bradford Ashgrid Roof Spacer System supports compliance, stability, and performance in metal roofing applications. Safe-Locâ„¢ connections ensure bar joints cannot be accidentally separated once engaged, while still allowing joints to be unlocked on site if required. Bracket heights position insulation blankets at their design thickness, contributing to BCA-compliant total R-Values. Pre-loaded corrosion-resistant screws and high-strength bracket design provide assurance in both non-cyclonic and cyclonic conditions.
Key Features
Cyclonic rated
Suitable for use in both non-cyclonic and cyclonic regions across all bracket heights
Faster installation
Modules supplied with screws fitted in brackets for straightforward fixing
Straight, stable runs
Safe-Loc spigots provide secure alignment and continuous load transfer
Maintains insulation thickness
Bracket heights support insulation blankets at full design thickness
Ashgrid Roof Spacer System Range
Bradford Ashgrid Roof Spacer System is available in non-cyclonic and cyclonic versions, with bracket heights from 60 mm to 150 mm to suit a variety of insulation blanket thicknesses.
Non-Cyclonic
- Brackets: 2 per 1200 mm bar
- Heights: 60, 80, 110, 120, 150 mm
- Supplied in packs of 12 bars (14.4 m per pack)
Cyclonic
- Brackets: 4 per 1200 mm bar
- Heights: 60, 80, 110, 120, 150 mm
- Supplied in packs of 12 bars (14.4 m per pack)
Technical Specifications
Ashgrid Roof Spacer System
| APPLICATION | SPACER/BRACKET HEIGHT | TO SUIT ROOFING BLANKET | LENGTH (mm) | QTY PER CARTON | PRODUCT CODE |
Non-Cyclonic | 60 | Anticon 80 | 1200 | 12 | 124865 |
| 80 | Anticon 140/145 | 1200 | 12 | 124864 | |
| 110 | Anticon 130 | 1200 | 12 | 124863 | |
| 120 | Anticon 140/145 | 1200 | 12 | 124862 | |
| 150 | Plain Building Blanket 175 | 1200 | 12 | 130329 | |
Cyclonic | 60 | Anticon 80 | 1200 | 12 | 124869 |
| 80 | Anticon 100/100HP/110 | 1200 | 12 | 124868 | |
| 110 | Anticon 130 | 1200 | 12 | 124867 | |
| 120 | Anticon 140/145 | 1200 | 12 | 124866 | |
| 150 | Consult with Bradford | 1200 | 12 | 130330 |

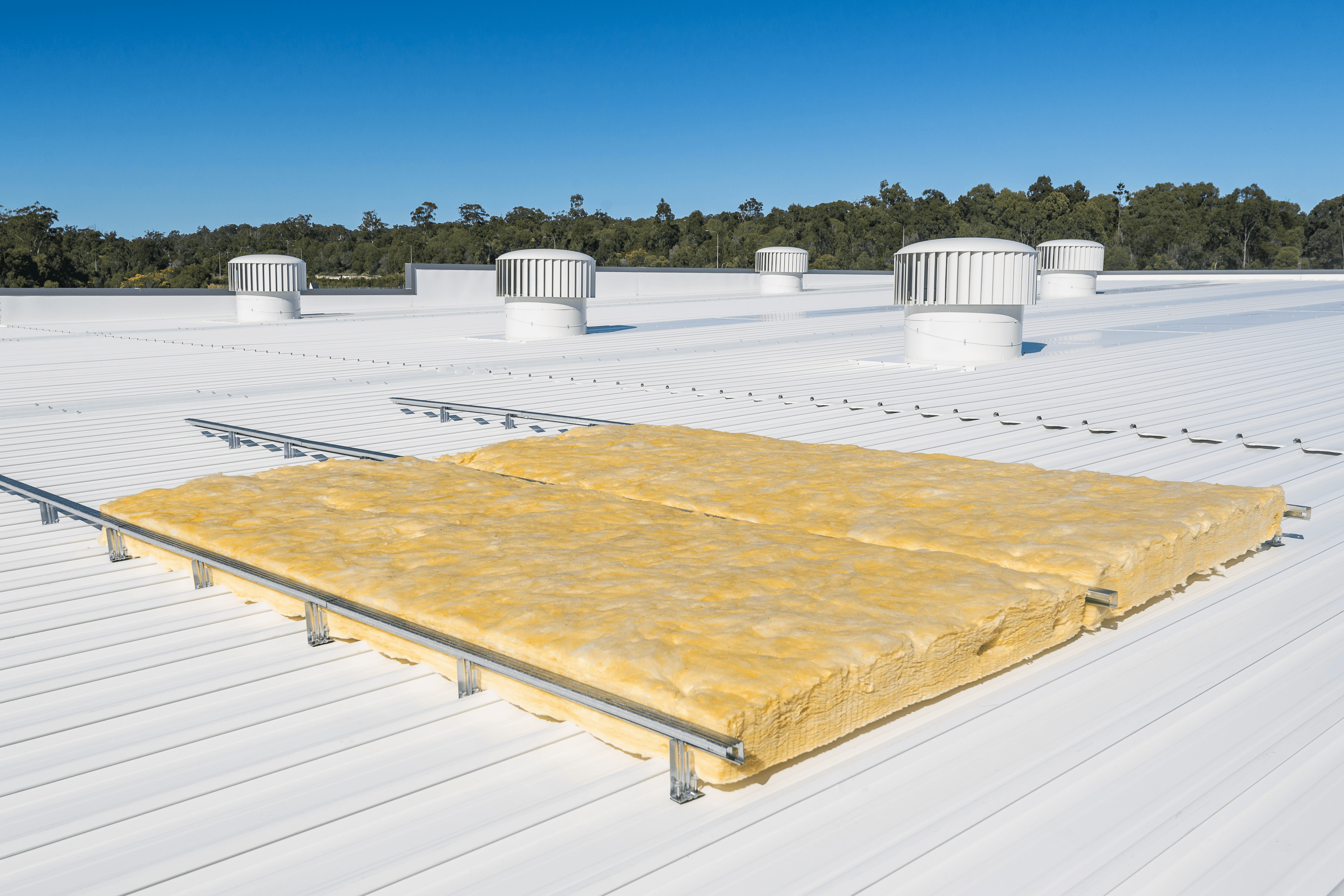

The Bradford Ashgrid Roof Spacer System is designed for use on commercial and industrial purlin roofs where insulation blankets are specified. By raising the cladding above the framing, it allows insulation to recover to its full thickness and contributes to achieving BCA compliant Total R-Values.
Suitable applications include:
- Large-span commercial and industrial metal roofs with concealed-fix or pierce-fix profiles
- Projects in both non-cyclonic and cyclonic regions, subject to structural engineer verification of roof framing capacities and load combinations
- Installations requiring reliable spacer performance without additional end caps or plugs
